Tuxedo TP9KACX 9,000 lb Two Post Clear Floor – Asymmetric

Original price was: 2,550.00$.Current price is: 1,785.00$.

SKU: TP9KACX Categories: , Tag:
Description

Description

The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!

Features

  • 9,000 lbs capacity
  • ASymmetric Arms
  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • Auto Arm Restraint System

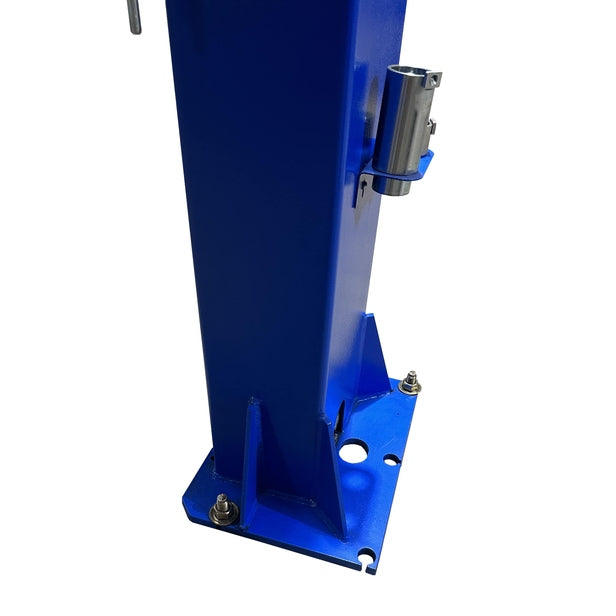

  • Single Piece Column
  • Internal Hose routing

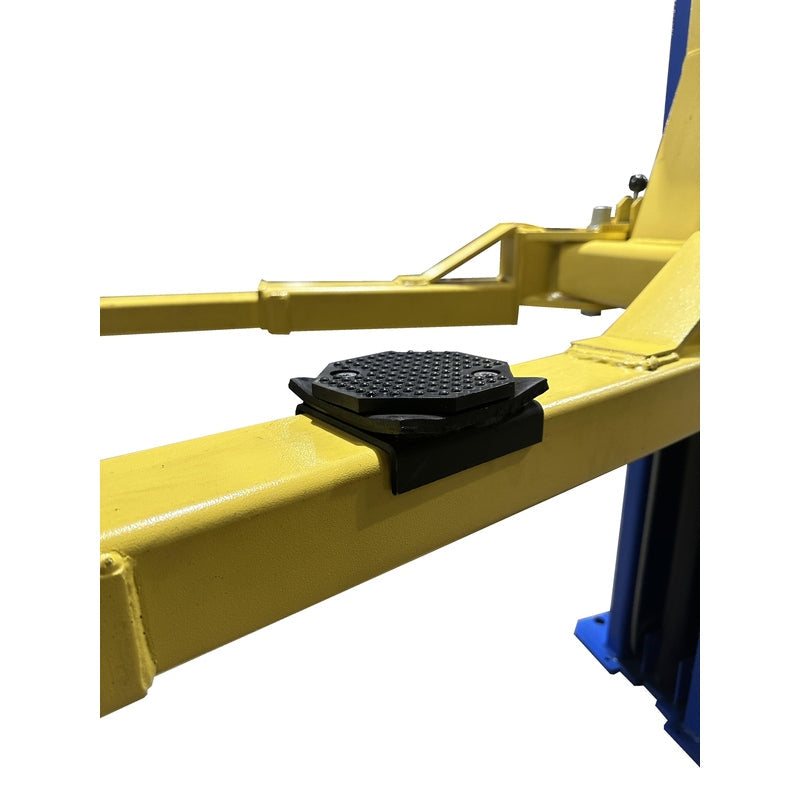

  • Low profile Spin Up Lift Pads
  • Stackable Adapters Included

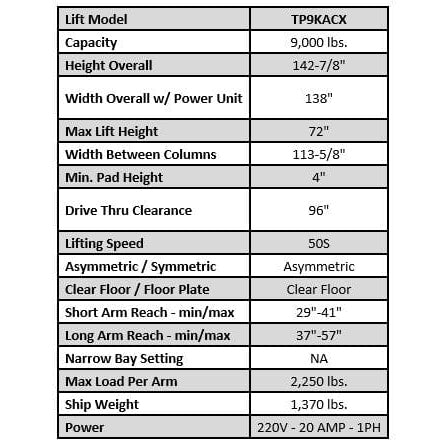

Specifications

Lift Model TP9KACX
Capacity 9,000 lbs.

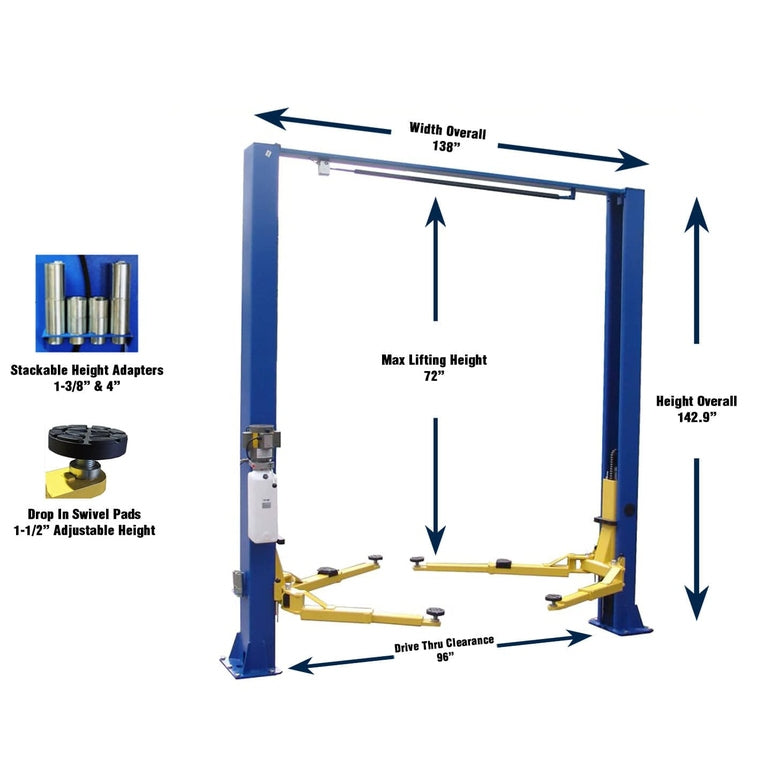

Height Overall 142-7/8″
Width Overall w/ Power Unit 138″
Max Lift Height 72″
Width Between Columns 113-5/8″
Min. Pad Height 4″
Drive Thru Clearance 96″
Lifting Speed 50S
Asymmetric / Symmetric Asymmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach min/max 29″-41″
Long Arm Reach min/max 37″-57″
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,370 lbs
Power 220V 20 AMP 1 PH

Manual

Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual
